VAG 1.6/2.0 TDi CR Engine 3″ (76mm) DPF Removal Stainless Exhaust Pipe

This is a 3″ bore pipe that allows you to remove the restrictive DPF filter and cat which are fitted to all modern diesel engines. When on track the DPF can cause you lots of problems and sap power.

Designed with 2 adapters included to allow the pipe to fit the 1.6 engine and also both the low power and the high power 2.0 engines.

The DPF or diesel particulate filter is fitted in the exhaust and catches soot and other diesel particulates, these filters have to go through a regeneration every once in a while which is controlled by the ECU, this usually happens when the vehicle is on the motorway. If the vehicle has not been able to regenerate the filter for a while or there is a fault with the engine itself the filter will block up and initially cause a fault to appear on the dash board, if you continue to use the vehicle the filter can block completely causing the engine to stop running. A new filter from a dealer will often be £500 or more plus labour.

Removing the DPF allows the engine to breath more efficiently freeing up power and reducing fuel consumption, it also improves reliability.

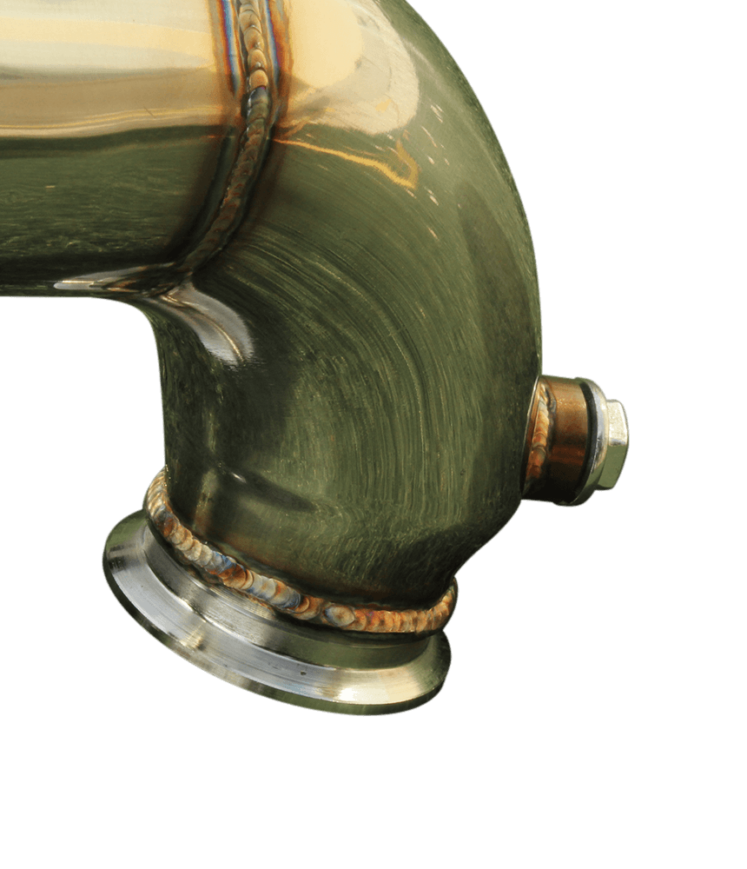

Directly replace s VAG part number 5N0 131 765 A, it will also fit other VAG models but the sensors will not all fit. Some of the later cars have an extra temp sensor in the nect where it meets the turbo and others have different fittings where the pressure sensors go into the pipe. If you have one of the other types it is usually very easy to sort but might require some adapters of welding for installation. The catalyst is also removed with this pipe.

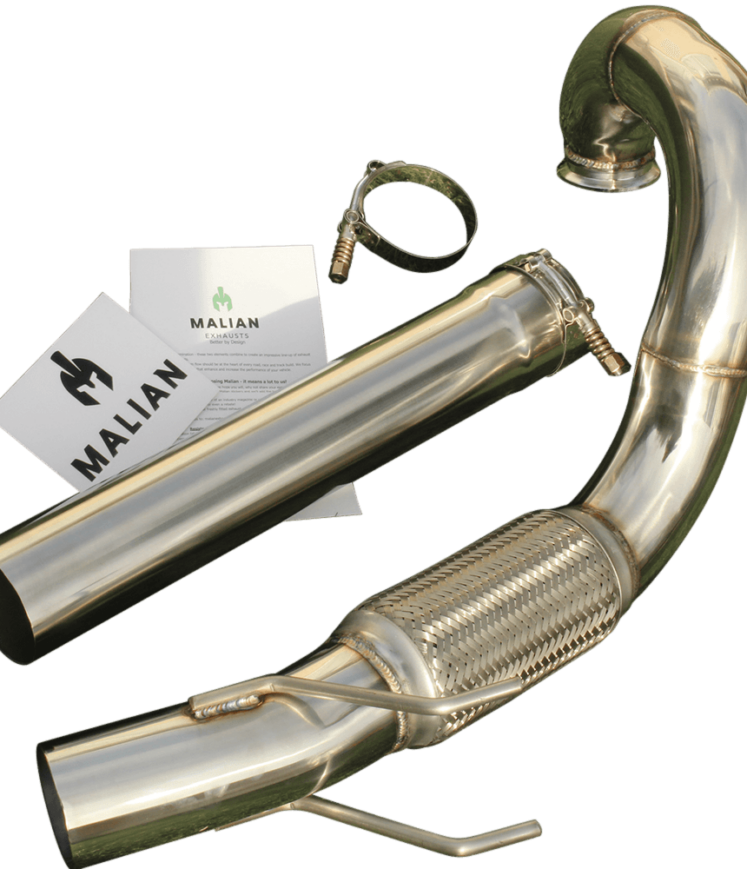

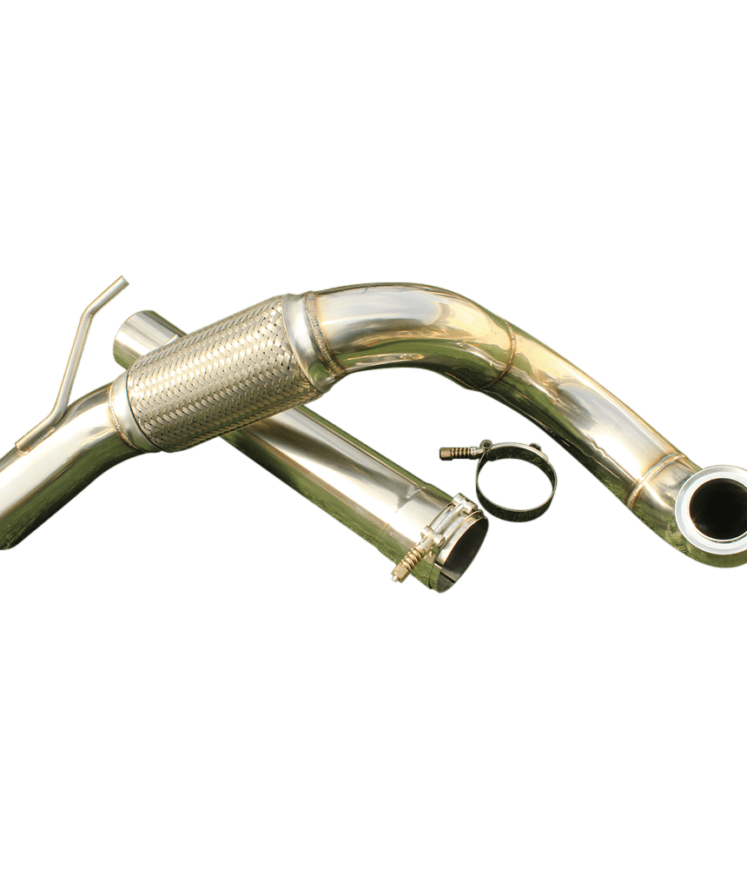

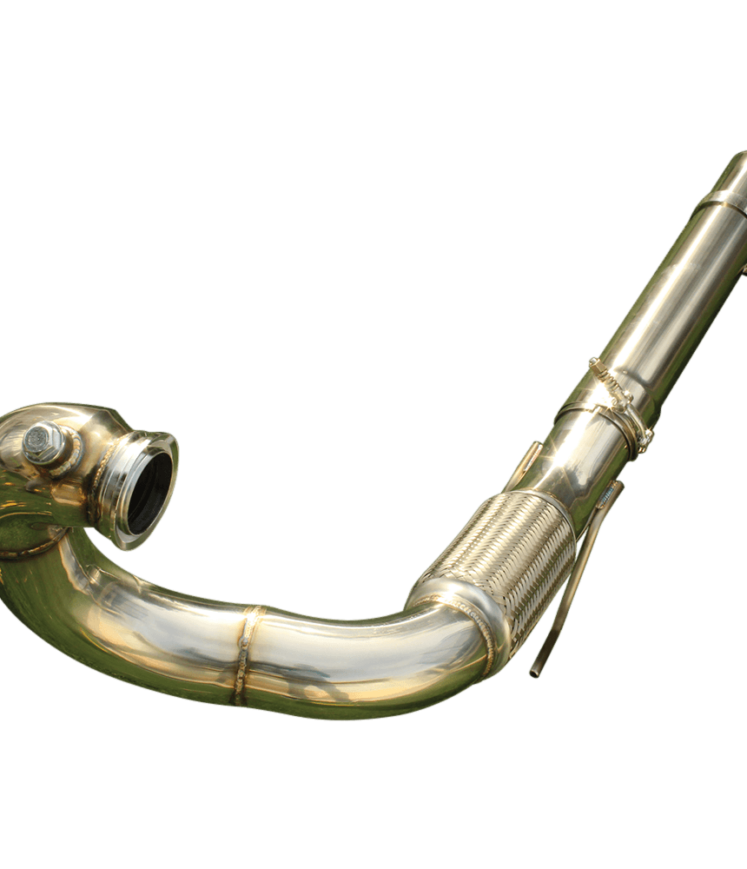

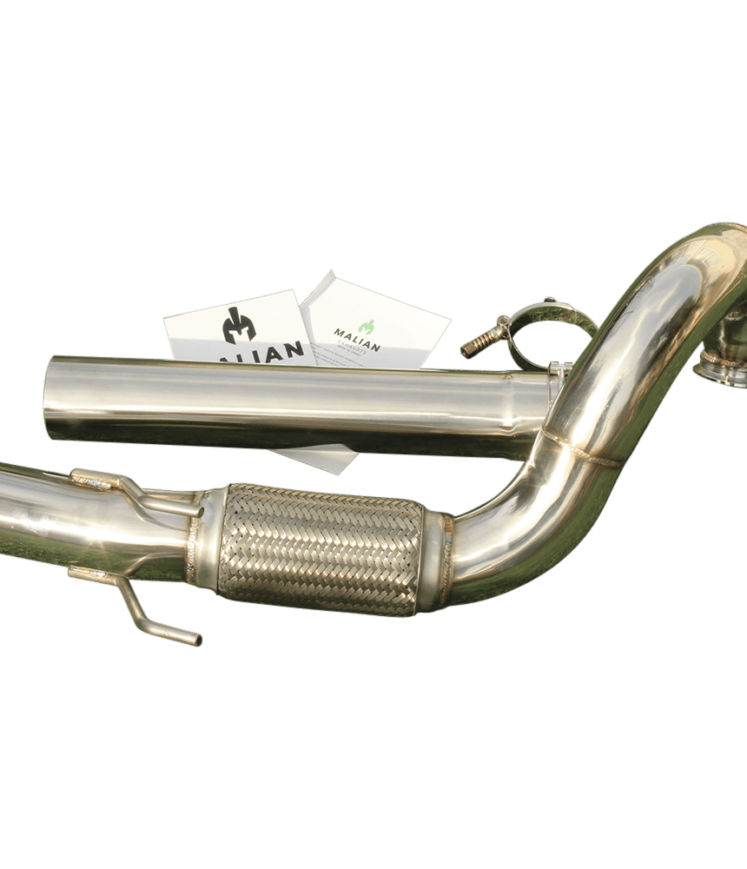

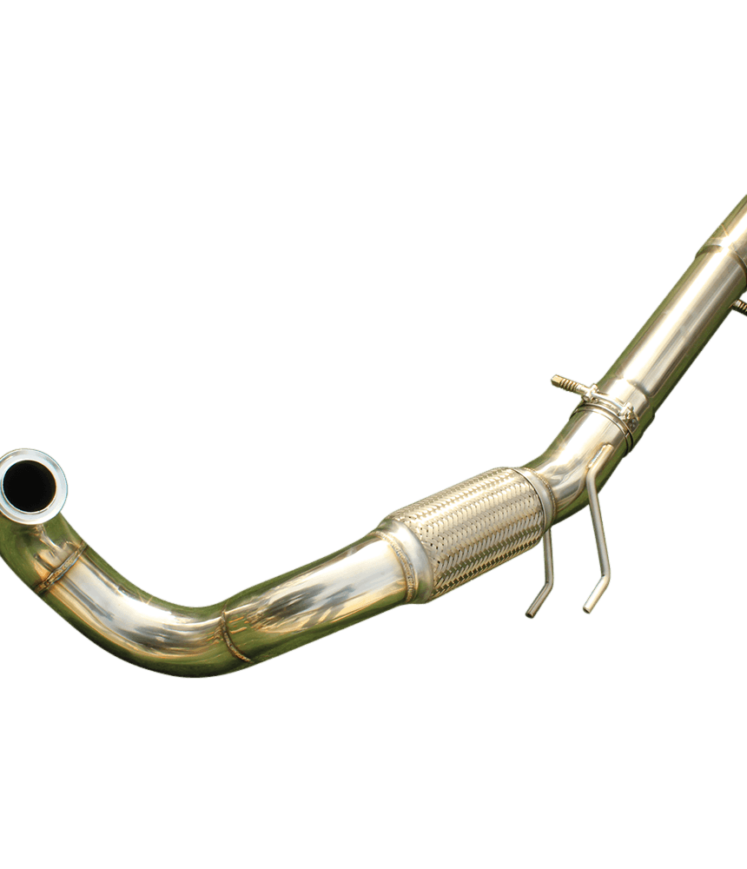

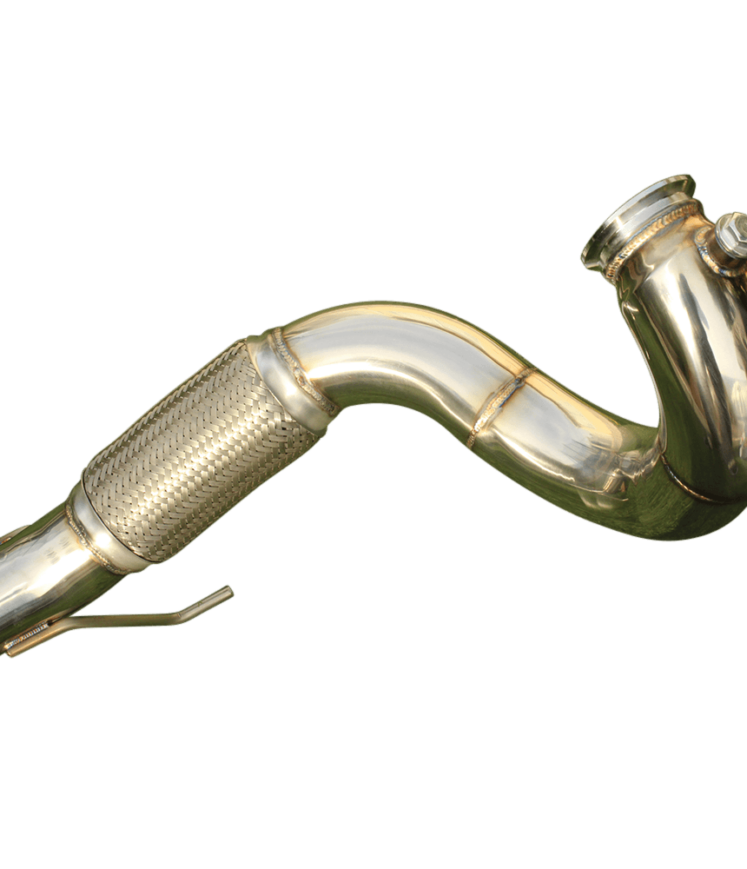

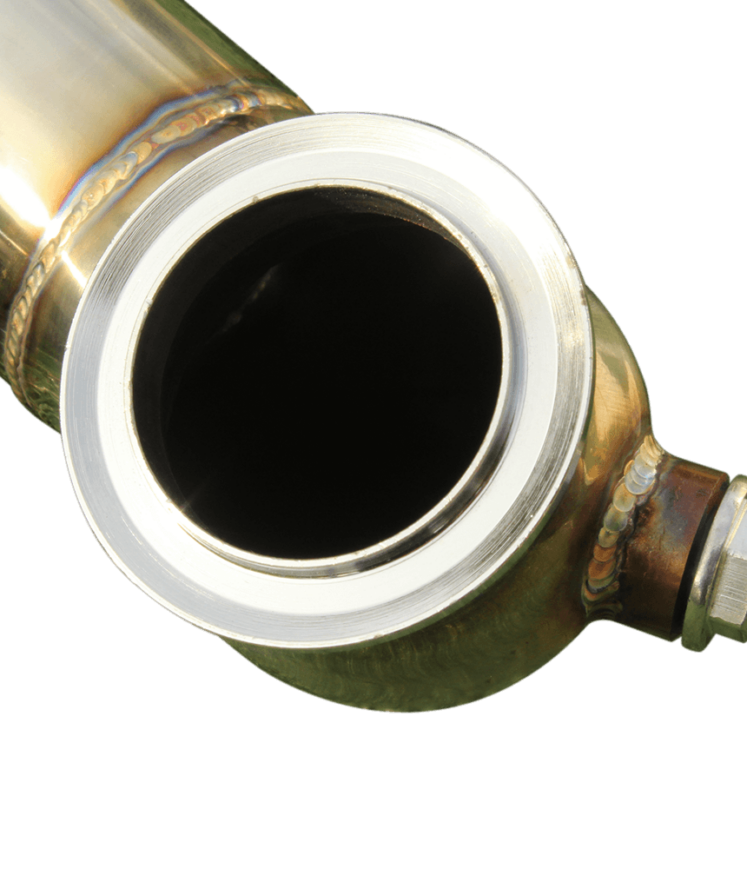

This pipe is made from stainless steel and will come with everything you can see in the pictures.

Once the pipe is fitted the car will need to have the ECU remapped otherwise the EML light will probably show and cause the car to go into a limp mode.

Designed to fit the below vehicles:

VW Golf Mk5 – BMN (PD170)

VW Golf Mk6 1.6 TDi – CAYB 90, CAYC 105, CLCA 110

VW Golf Mk6 – CBDC 110, CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CBAC 143, CFGB / CBBB 170

VW Golf Mk6 Plus – CAYB 90, CAYC 105, CLCA 110

VW Jetta Mk5 – BMN (PD170) / CEGA (CR170)

VW Jetta Mk6 1.6 TDi – CAYB 90, CAYC 105, CLCA 110

VW Jetta Mk6 – CBDC 110, CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CBAC 143, CFGB / CBBB 170

VW Passat – BMR (PD170) / CBBB (CR170), CBAB (CR140), CBAC (CR143 Bluemotion)

VW Passat CC – CBAA (CR136), CBAB / CFFB (CR140), CLLA / CFGB / CBBB (CR170)

VW Touran – BMN (PD170) / CFJA (CR170)

VW Scirocco – CFHB 136, CFHC 140, CFGB / CBBB 170

VW Touran CR – CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CFGB / CBBB 170

Audi TT – CBBB / CFGB (CR170)

Audi A3 8P – BMN (PD170) / CBBB / CFGB (CR170)

Audi A3 1.6 CR – CAYB 90, CAYC 105, CLCA 110

Audi A3 CR – CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CFGB / CBBB 170

Seat Leon – BMN (PD170) / CEGA / CFJA (CR170)

Seat Leon Mk2 1.6 TDi – CAYB 90, CAYC 105, CLCA 110

Seat Leon Mk2 CR – CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CFGB / CBBB 170

Seat Toledo – BMN (PD170) / CEGA / CFJA (CR170)

Seat Toledo CR – CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CFGB / CBBB 170

Seat Altea – BMN (PD170) / CEGA (CR170)

Seat Altea CR – CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CFGB / CBBB 170

Skoda Octavia Mk2 – BMN (PD170) / CEGA (CR170)

Skoda Octavia 1.6 TDi – CAYB 90, CAYC 105, CLCA 110

Skoda Octavia VRS CR – CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CFGB / CBBB 170

Skoda Superb CR – CBAA / CFAA 136, CBAB / CBDB / CFFB / CJAA 140, CFGB / CBBB 170

NB: PLEASE NOTE THE ABOVE IS NOT A DEFINITIVE LIST, ALWAYS CHECK BEFORE ORDERING IF YOU ARE UNSURE ON FITMENT. MIGHT REQUIRE SOME VEHICLE MODS AND SLIGHT ADAPTATION TO FIT YOUR VEHICLE.
