BMW 3-Series 320i/323i/325i/328i E36 3″ JDM, Engine Back Race Exhaust, 91-99
BMW 3-Series 320i/323i/325i/328i E36 3″ JDM, Engine Back Race Exhaust, 91-99
BMW 3-Series 320i/323i/325i/328i E36 3″ JDM, Engine Back Race Exhaust, 91-99
Important fitment information
Important: Fits the listed BMW E36 six-cylinder models with M50 or M52 engines, plus S50-engined E36 M3 models when installed as the complete engine-back system using the supplied MAL-174 manifold. Fits all body styles except Compact. Does not fit Z3. RHD steering clearance: Clearance between the MAL-174 manifold and steering shaft is very tight. Check engine-mount condition before fitting. A slimline/skinny steering shaft may be required if adequate clearance cannot be achieved; it is not required on every car. Check clearance throughout steering travel and engine movement. The steering shaft must never contact the exhaust.

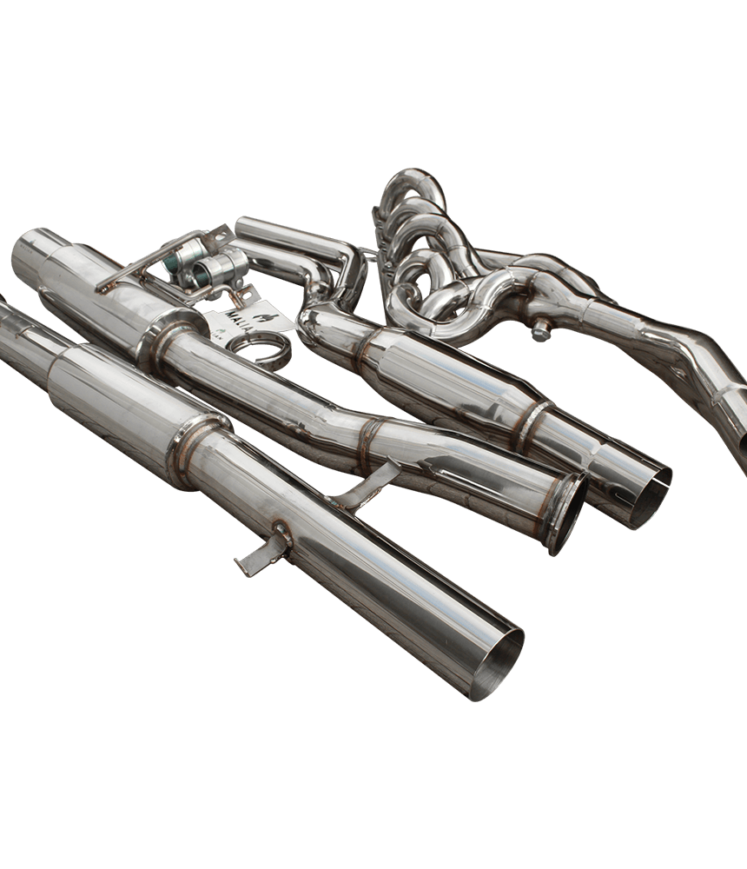

Complete engine-back exhaust system with the supplied MAL-174 manifold, JDM upswept rear silencer.
Whether you’re chasing track performance or head-turning street presence, this system delivers on all fronts. Key Features: Race-Style Equal Length Manifold: Engineered for maximum power and efficiency, the equal-length manifold ensures smooth exhaust flow.
Key features
- Vehicle-specific fitment: BMW 3-Series 320i/323i/325i/328i (E36) — 91-99
- Product type: Full System
- 3″ pipework · Stainless Steel construction · TIG-welded joints
- Fitting kit included
- 4″/100mm JDM tailpipe
Sound and character
A substantial performance boost and a deep, resonant exhaust note that commands attention. Sound Test (Static Noise): A static noise test was conducted using a BMW 328i with a modified intake at 3500 RPM. The test was performed 1 meter behind the car’s center, giving you a rough idea of the exhaust’s sound profile. Actual sound levels may vary depending on vehicle setup and modifications, but expect an aggressive, race-inspired tone.
Design features

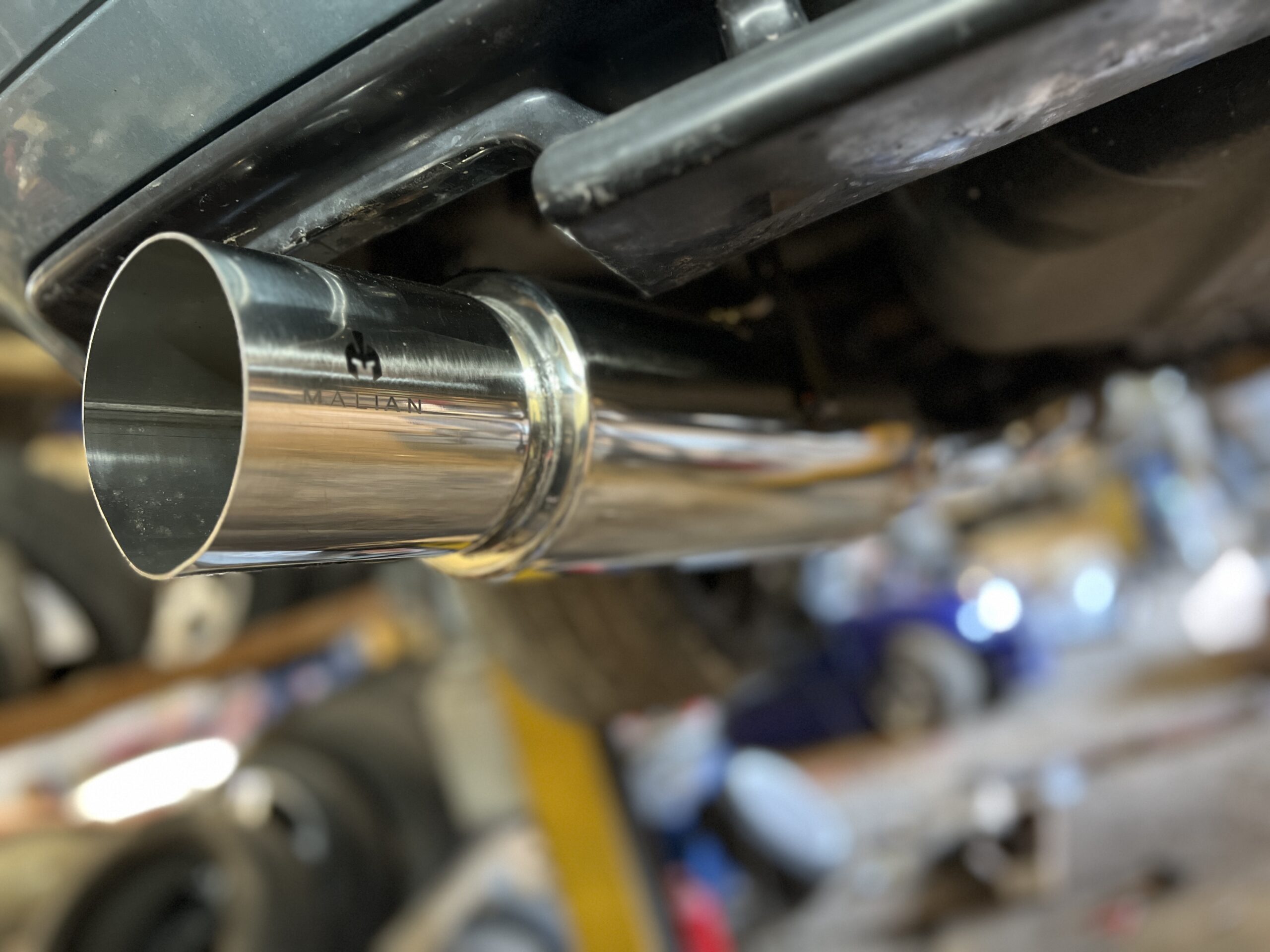

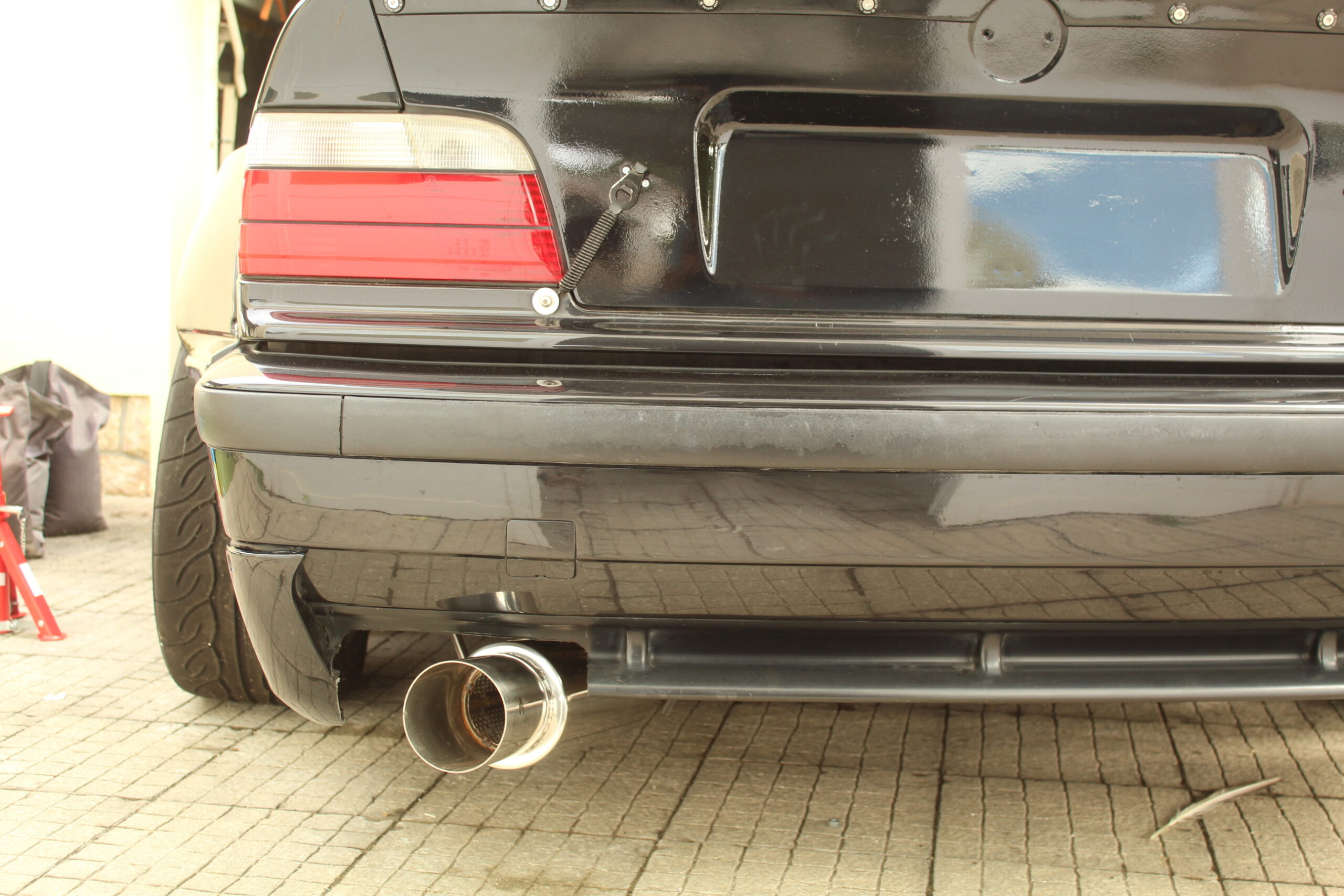

JDM-Inspired Upswept Rear Silencer: This system is finished with a bold JDM-style upswept silencer, featuring a 4″ tailpipe that merges Japanese design cues with the E36’s iconic lines. Installation Tips: Proper Sealing Required: To ensure a leak-free installation, apply high-temp RTV sealant to all joints before assembling.
Fitment notes

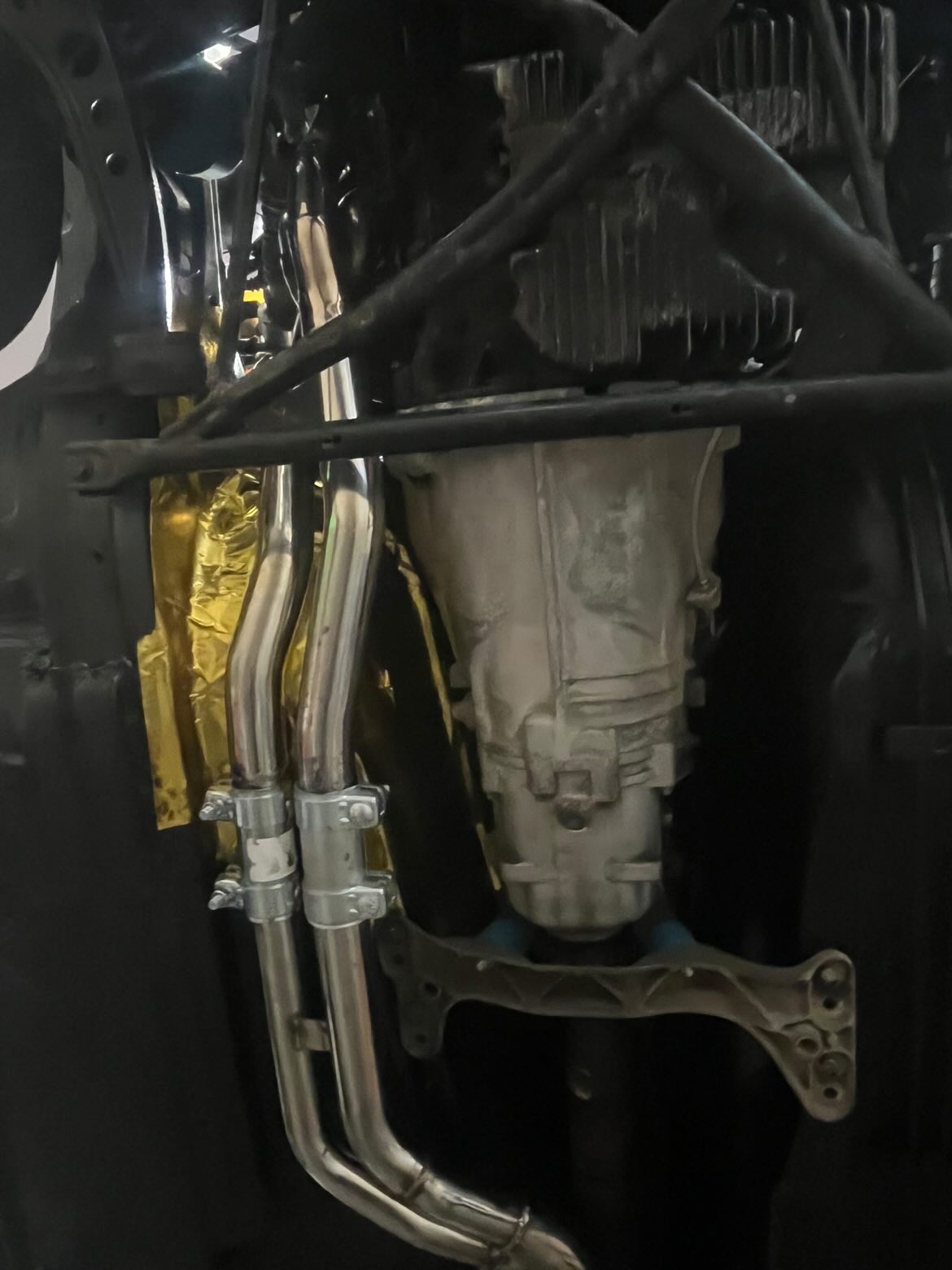

Includes bosses for the OEM lambda sensors. After merging under the chassis, the exhaust continues as a 3-inch single pipe to the rear. Fits with the M3 rear bumper. The joints and supplied clamps are not designed to be assembled dry; use the specified sealant during installation.
The result? While typically seen on Japanese cars, the upswept look offers a unique aesthetic on the E36 that truly stands out. This setup offers a direct bolt-on solution with no cutting required. Ideal for E36 enthusiasts looking to stand out with a unique exhaust.

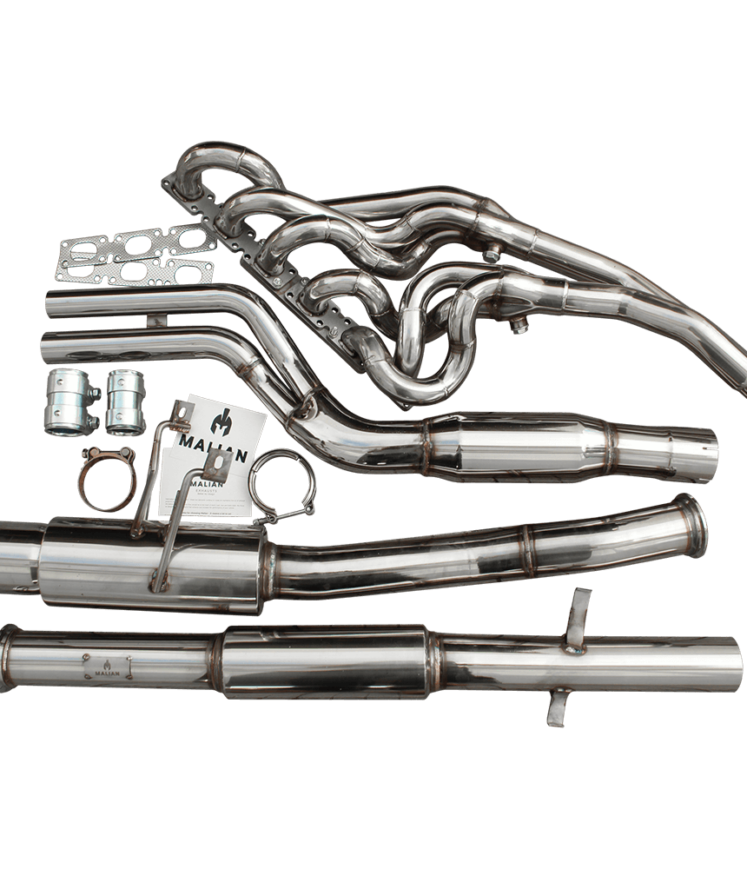

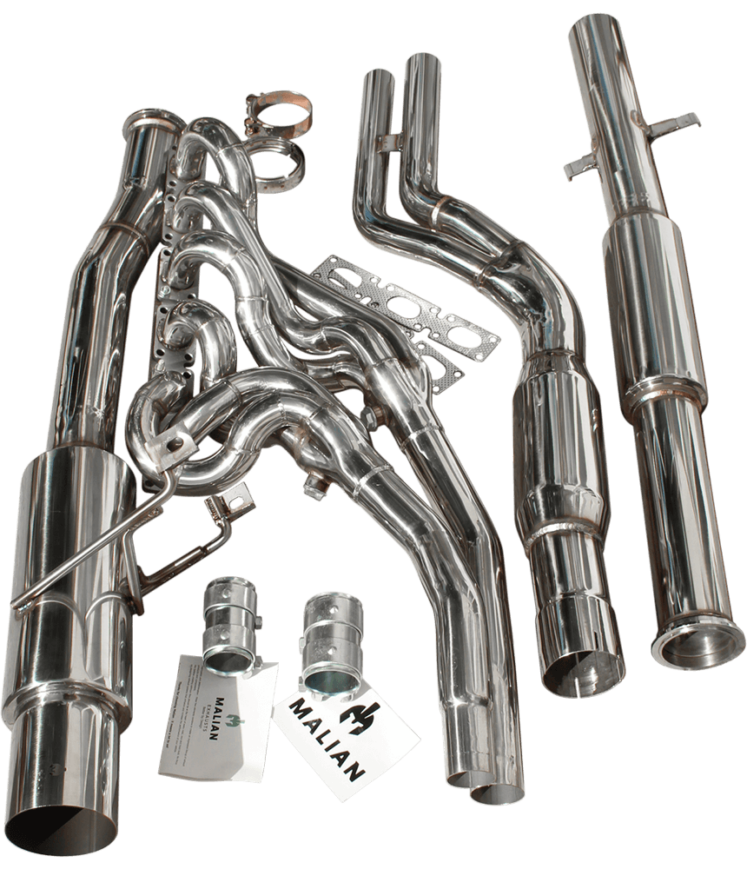

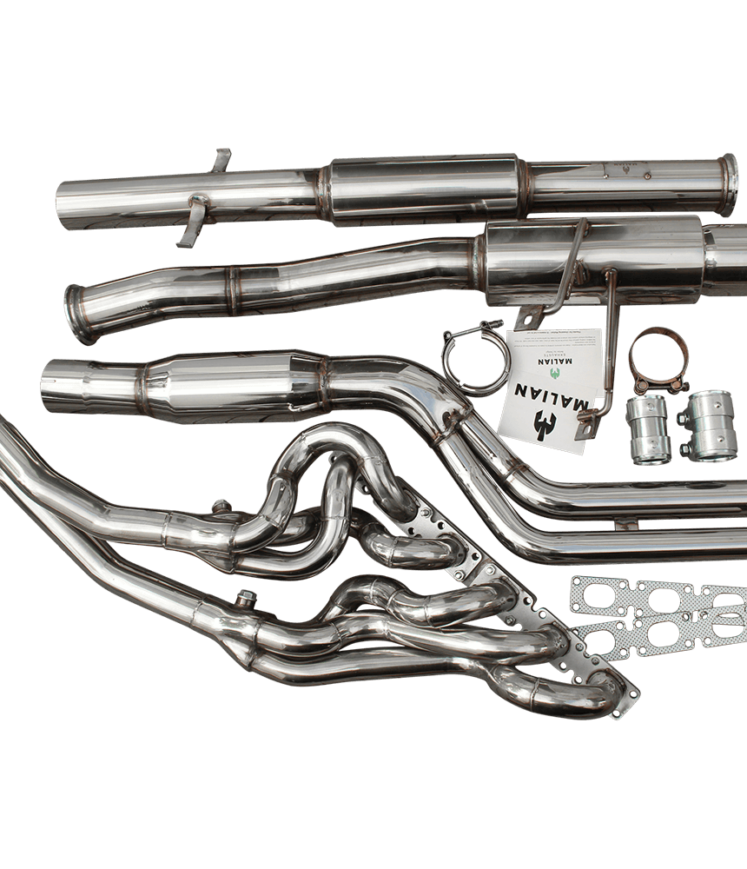

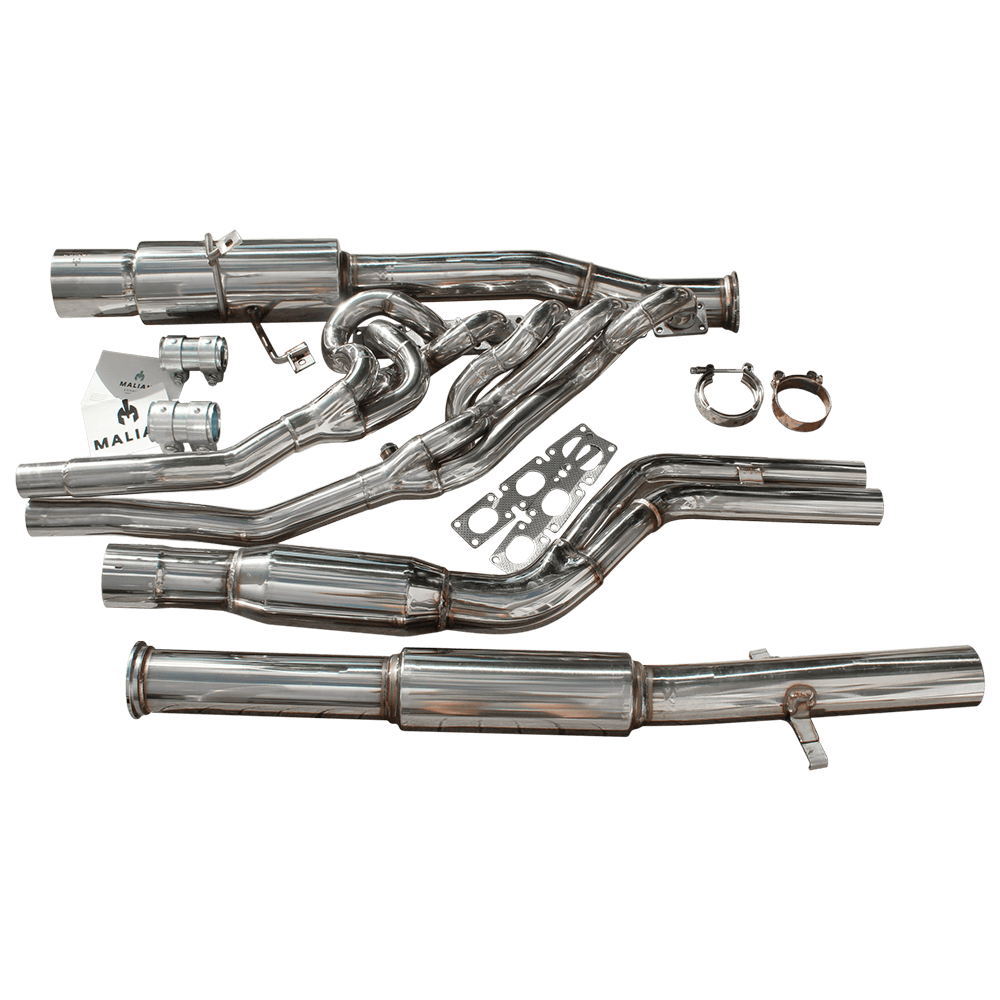

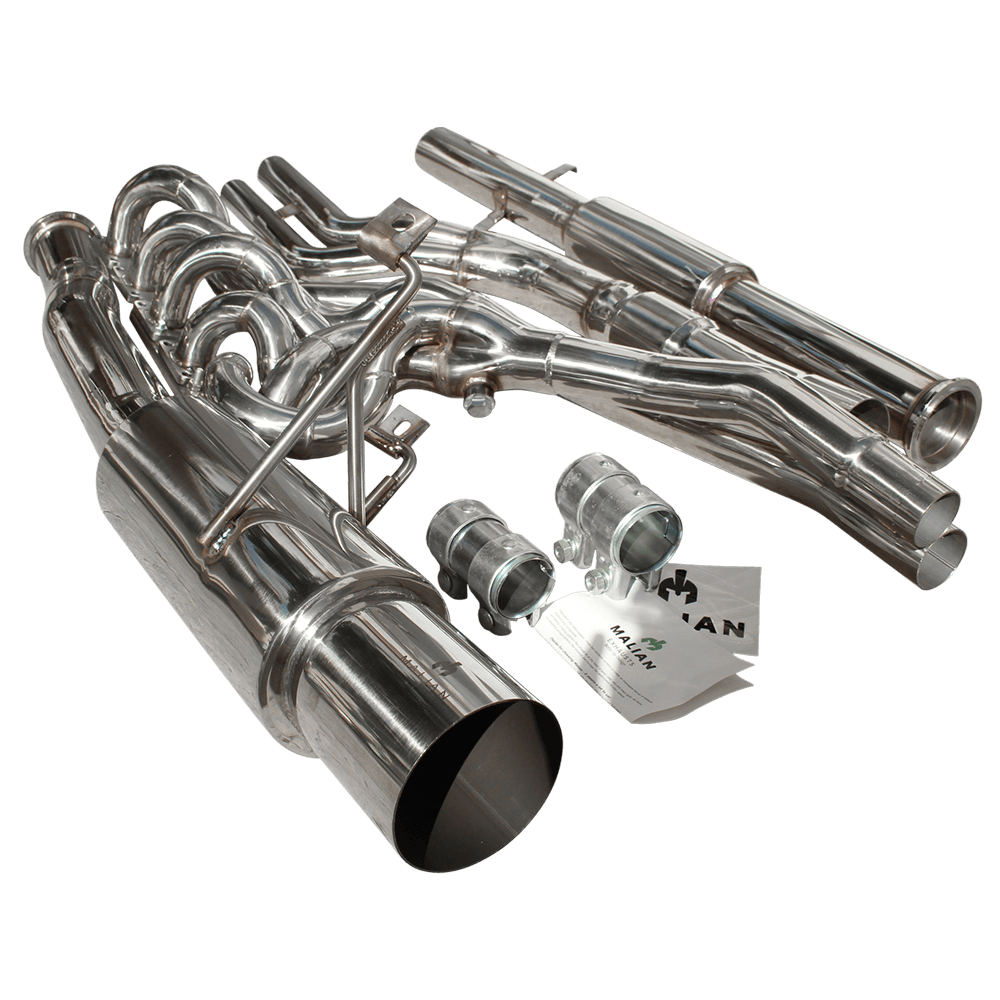

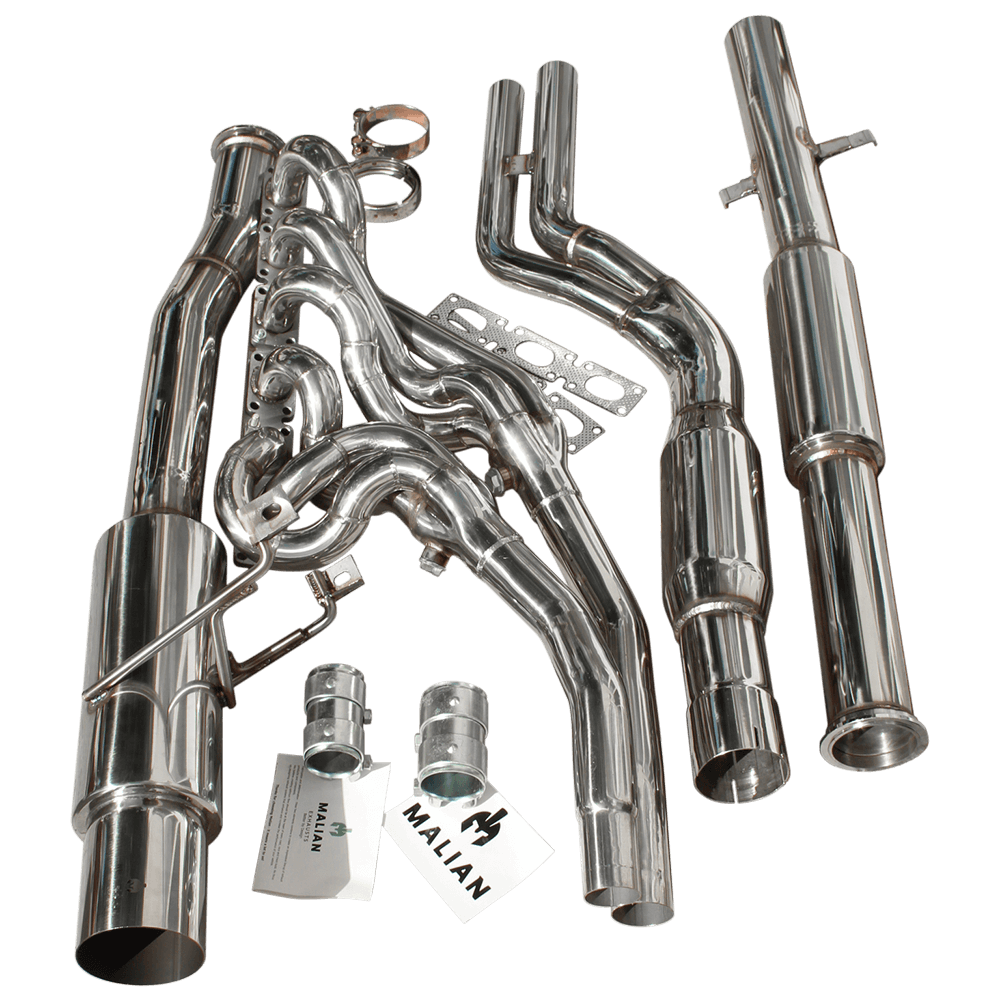

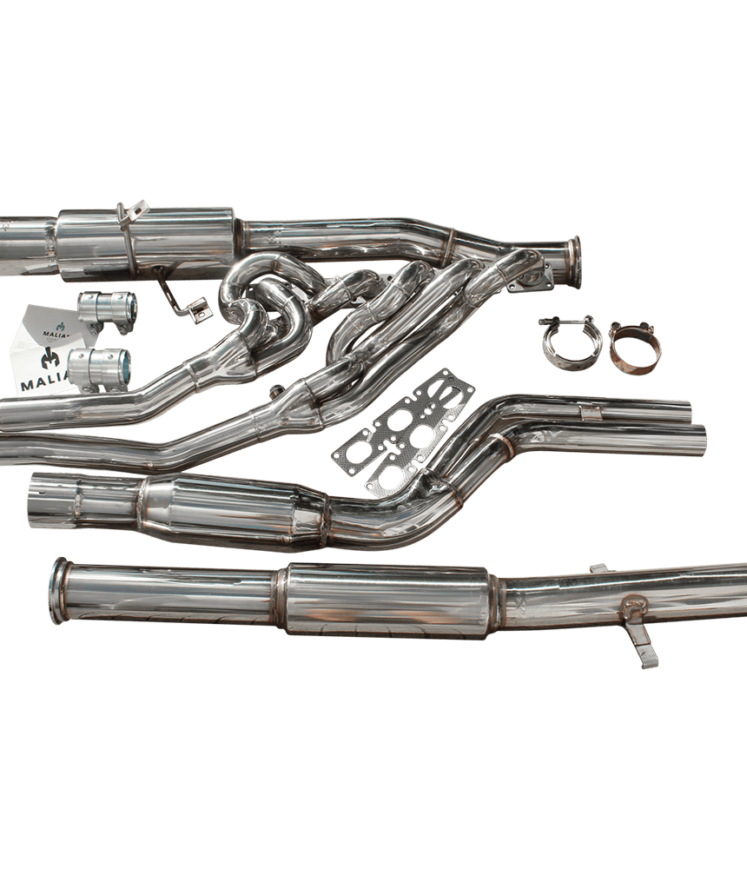

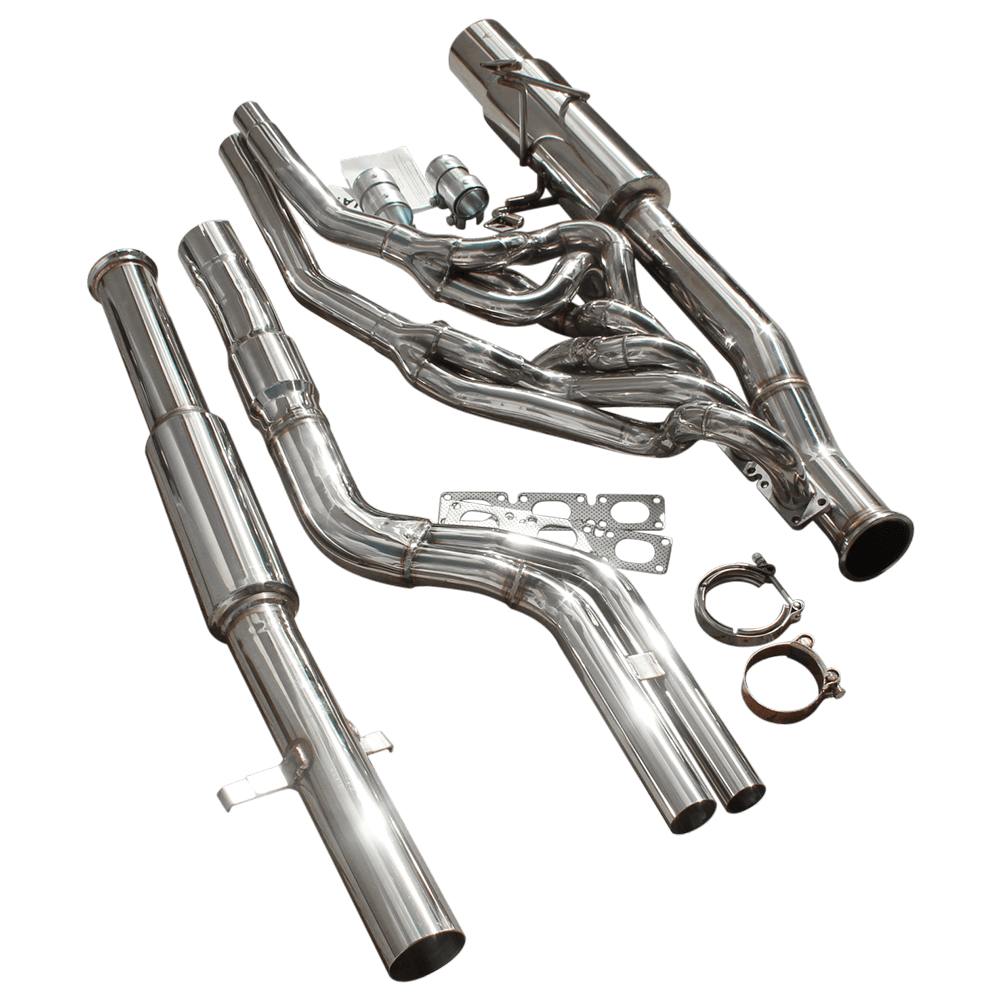

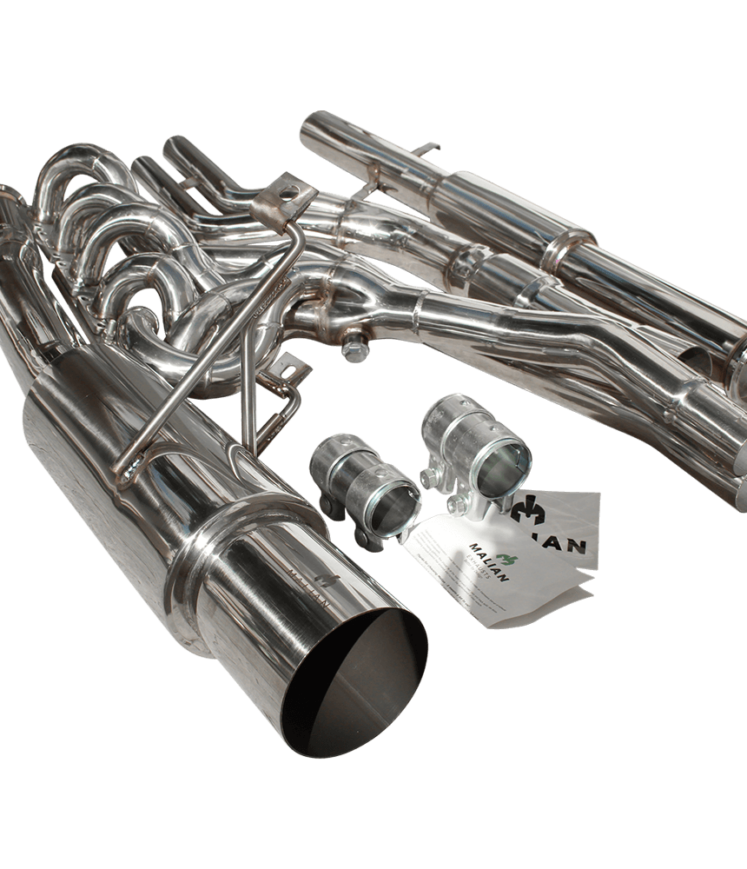

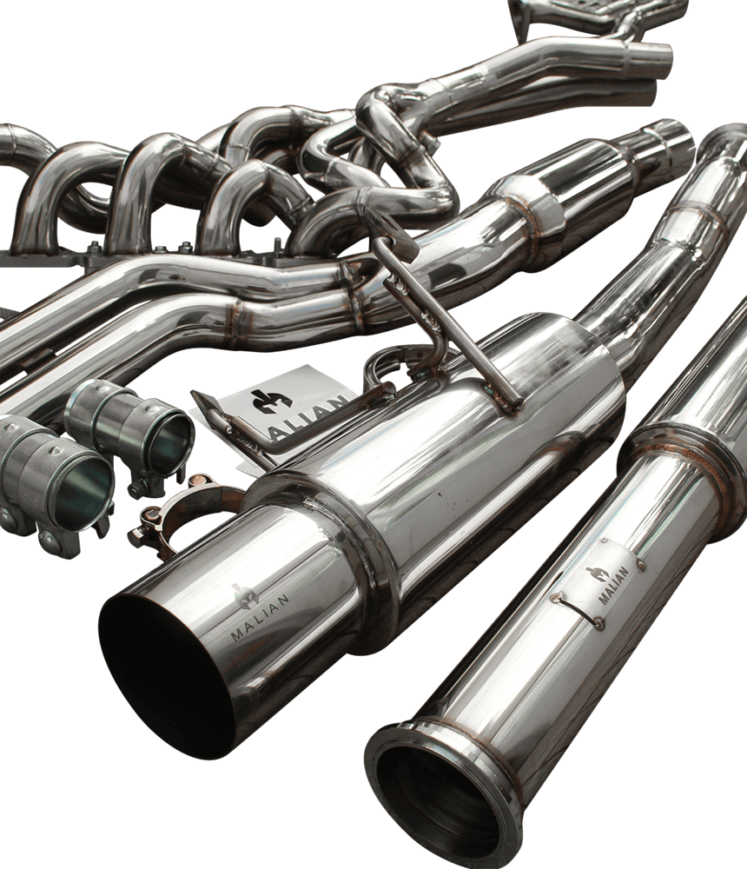

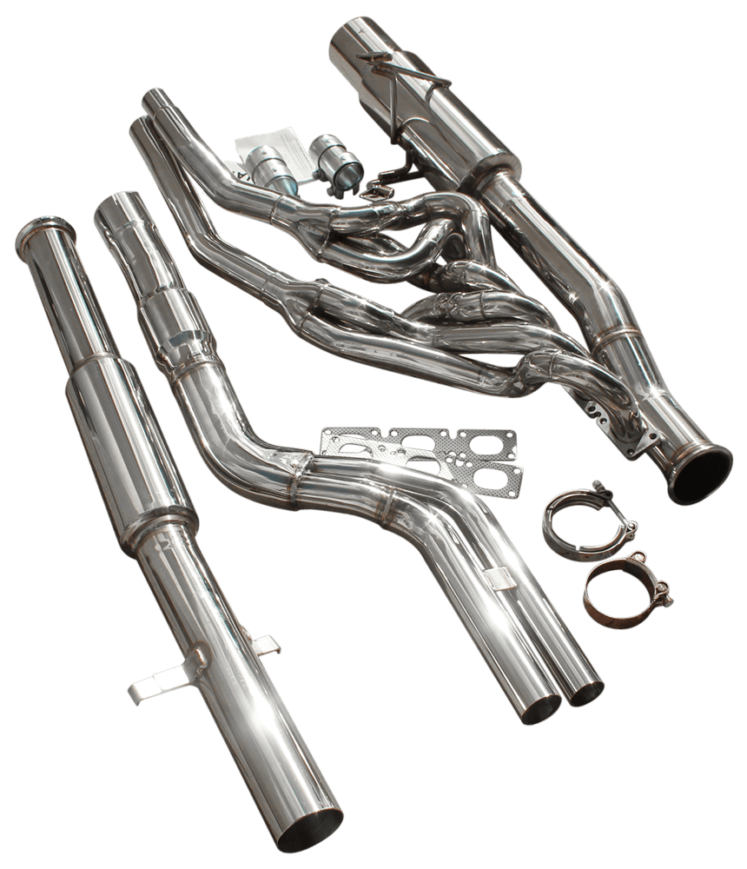

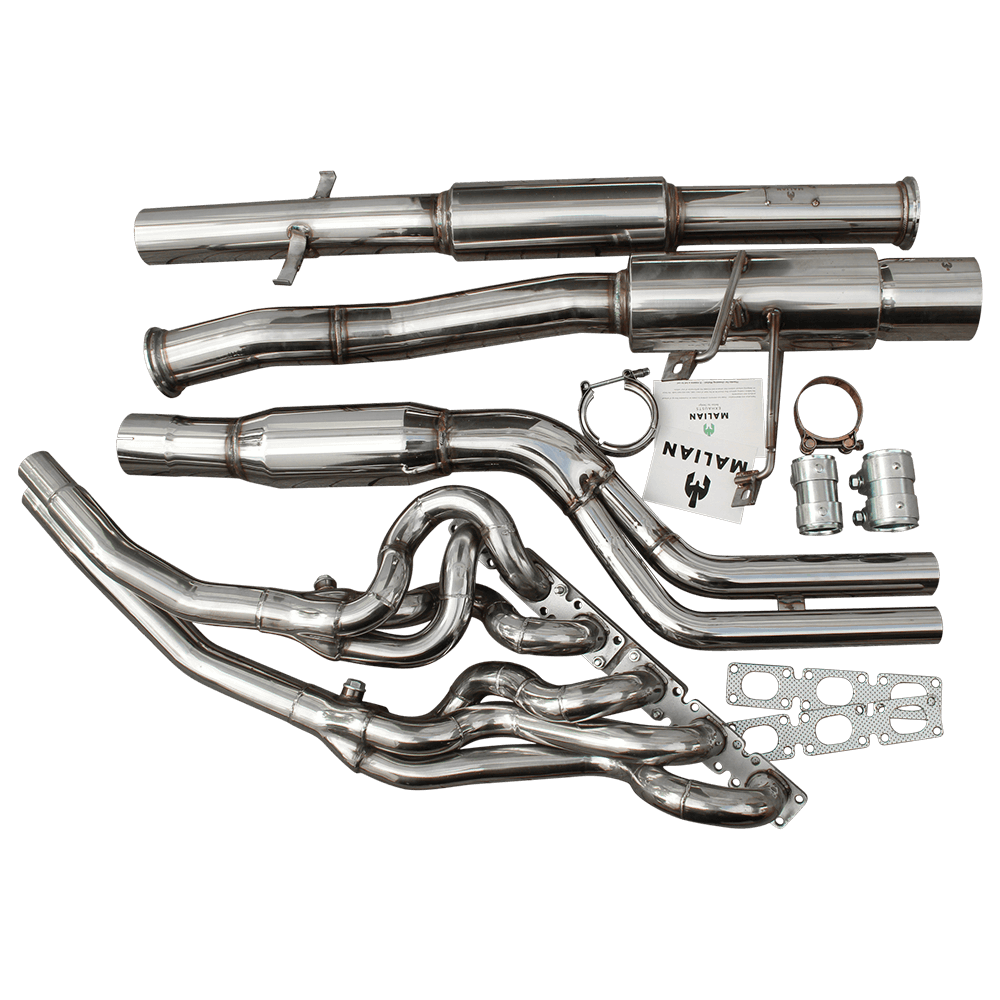

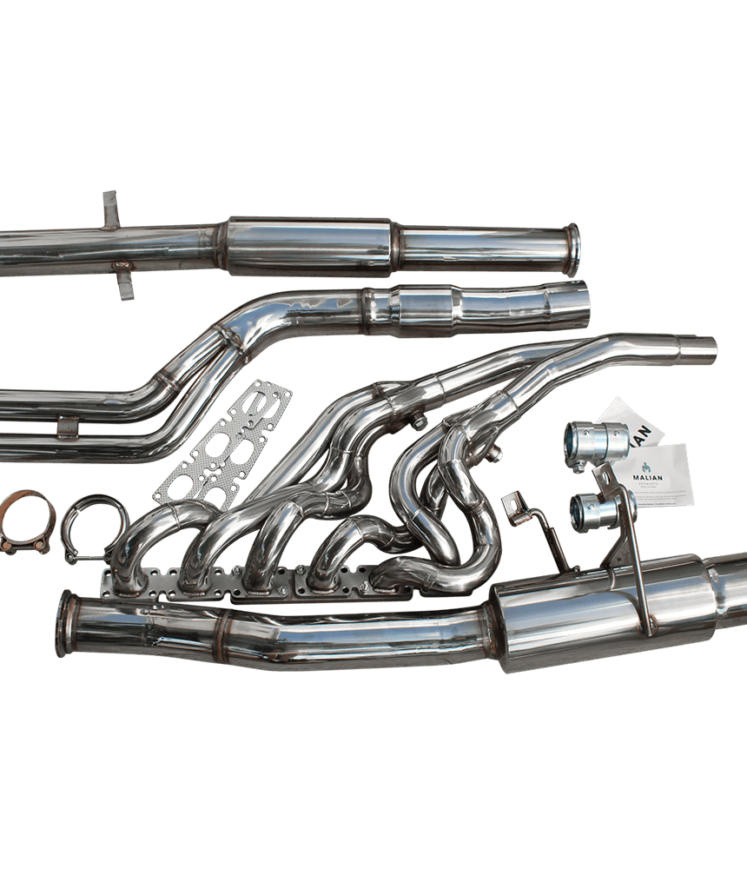

What’s in the box?
- 1 × Tubular Exhaust Manifold
- 1 × Decat Section
- 1 × JDM Rear Exhaust Section
- 1 × Centre Exhaust Section

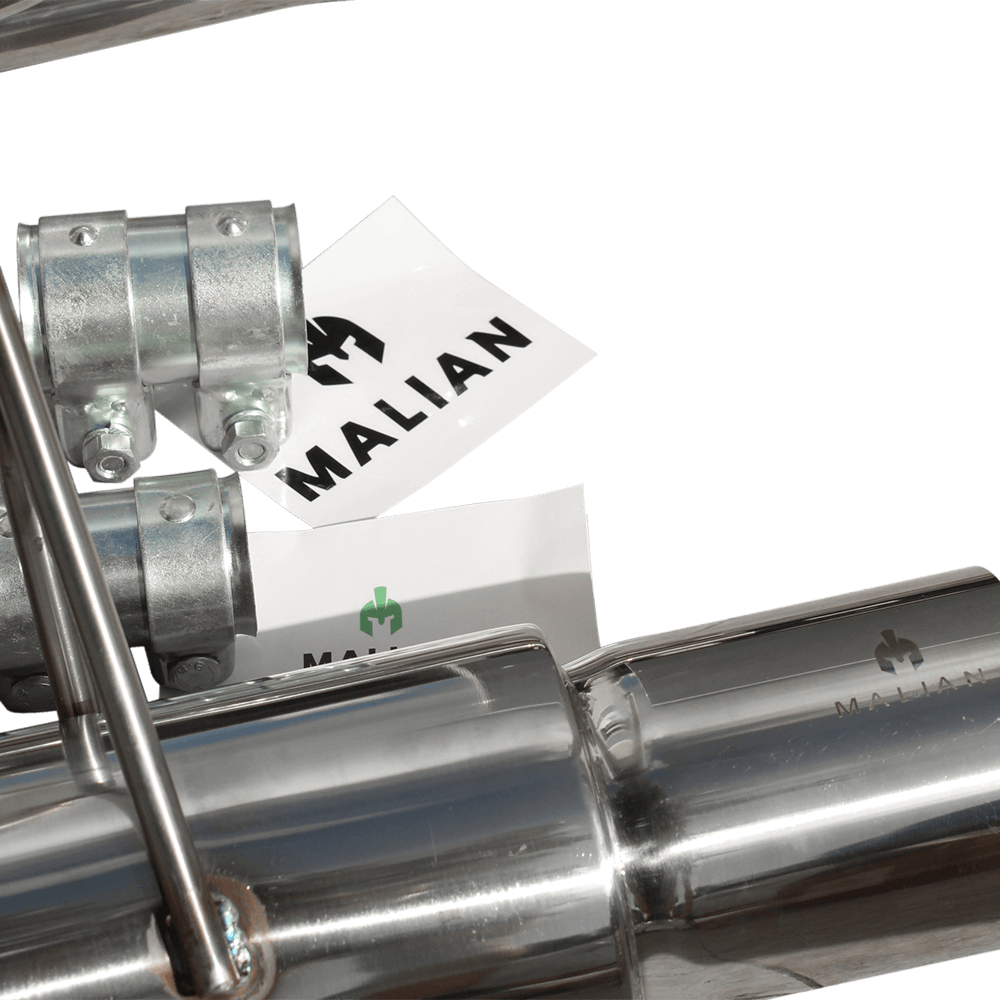

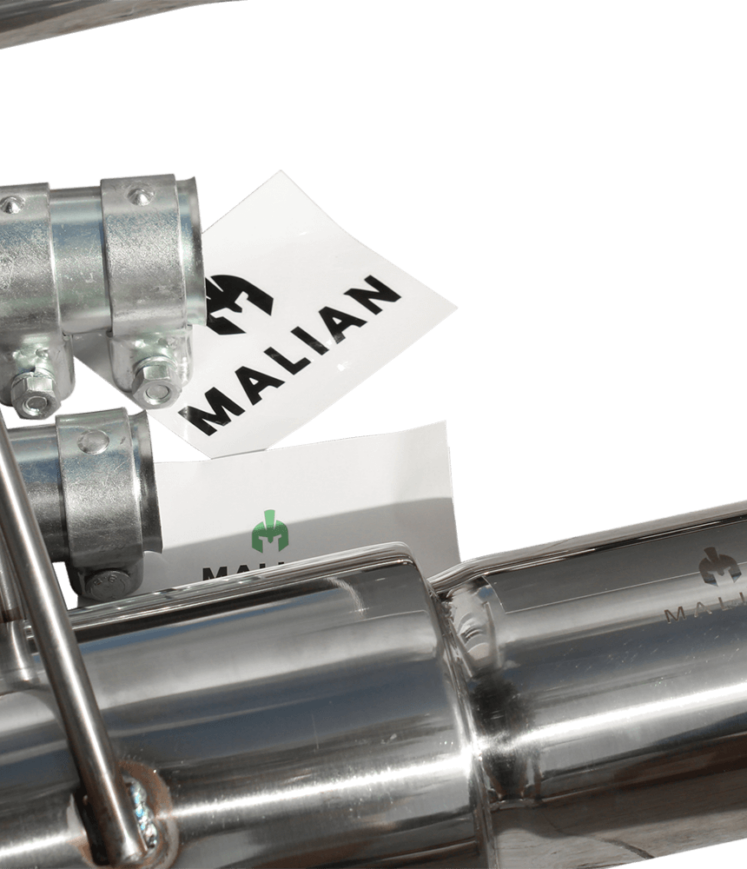

- 1 × Fitting Kit
Technical specifications
- Product type: Full System
- Tube diameter: 3″
- Material: Stainless Steel
Vehicle compatibility
- Manufacturer: BMW
- Model: 3-Series 320i/323i/325i/328i
- Chassis code: E36
- Production years: 91-99
- Engine: 2.0/2.5/2.8
- Engine code(s): M50|M52
BMW E36: one chassis, many configurations
The E36 range includes four- and six-cylinder engines, several body styles and a wide variety of factory exhaust layouts. Selected Z3 products also use this chassis key, so the model and engine details shown above should always take priority over the profile heading.
Manifold clearance, steering position, catalyst arrangement and the connection to the centre section can all vary. Rear systems also differ by body style and bumper layout, so check every product-specific fitment note before installation.
More BMW E36 Exhaust Parts
| Weight | 25.3 kg |
|---|---|
| Dimensions | 36 × 106 × 46 cm |
| Production Years | 91-99 |
| Engine Size | 2.0/2.5/2.8 |
| Part Number | MAL-338 |
| YouTube | |
| Part | Full System |
| Model | 3-Series 320i/323i/325i/328i |
| EU Approved | No |
| Engine Code | M50, M52 |
| Manufacturer | BMW |
| Chassis Code | E36 |
| Welding Type | TIG |
| Steering Side | Right Hand Drive or Left Hand Drive |
| Tube Diameter | 3" |
| Fitting Kit Included? | Yes |
| Important Notes | Fits the listed BMW E36 six-cylinder models with M50 or M52 engines, plus S50-engined E36 M3 models when installed as the complete engine-back system using the supplied MAL-174 manifold. Fits all body styles except Compact. Does not fit Z3. RHD steering clearance: Clearance between the MAL-174 manifold and steering shaft is very tight. Check engine-mount condition before fitting. A slimline/skinny steering shaft may be required if adequate clearance cannot be achieved; it is not required on every car. Check clearance throughout steering travel and engine movement. The steering shaft must never contact the exhaust. |
